ASME CNG Storage

Cobey Energy ASME CNG Storage Vessels standard offerings include:

  • Designed, manufactured and National Board registered according to ASME Code Section VIII, Div. 2 specifications.
  • Each vessel in the assembly will be furnished with:
    • One (1) ¾” NPT, ¾” relief valve with isolation valve
    • One (1) ¾” NPT, ¾” Inlet/Outlet with isolation valve
    • One (1) 1” NPT, 1” Inlet/Outlet, plugged
    • One (1) ¾” NPT, ¾” Inlet/Outlet, plugged
    • One (1) ½” NPT, ½” drain with needle valve

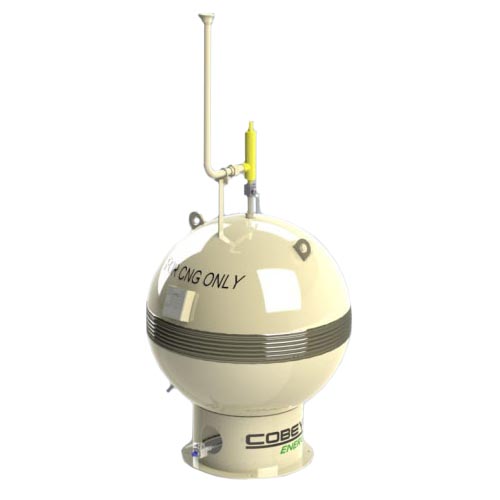

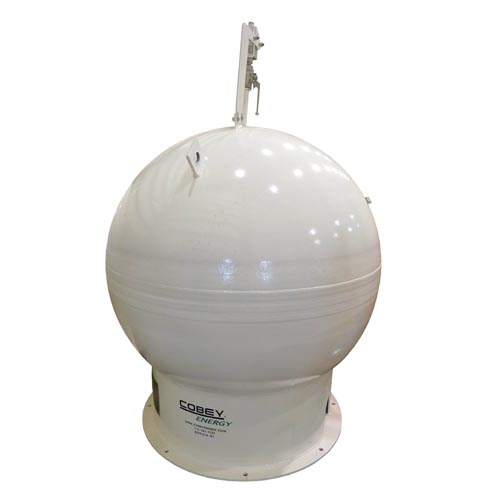

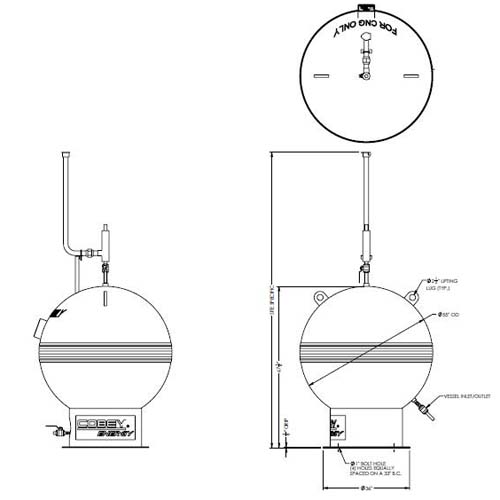

  • Each sphere is mounted on a skirt with base plate.  Base plate includes mounting holes for field installation.
  • Sandblasted, with two coat white paint system applied.
  • Marked “FOR CNG ONLY”

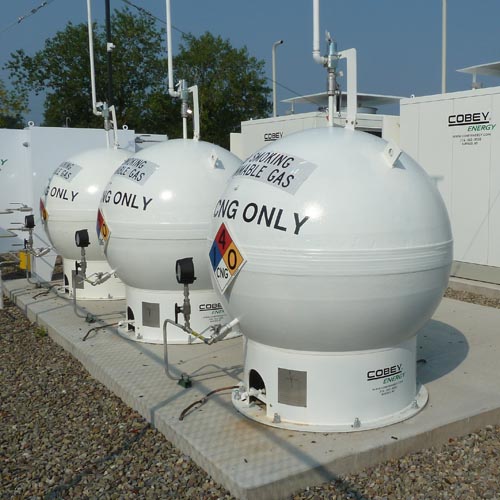

  • Available in single vessel and 3 vessel cascade configurations.

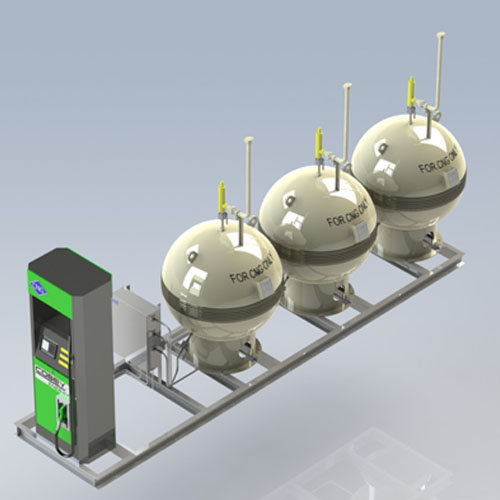

  • Available in pre-tubed, skid mounted configuration (CE-PSO).


Cobey Energy CNG ASME Storage Vessels data:

CE-VR
Single Vessel
CE-VRA
3 Vessel Cascade
Vessesl Capacity
@ 4,500 psig (scf)
11,368 34,104
Equivalent GGE
capacity (gal)
91 273
Water Volume
(ft3)
33.6 100.8
Vessel Size
(in)
48" I.D. x 67.13" H 48" I.D. x 67.13" H x 165" L
Working Pressure
(psig)
5,000 5,000
Design Pressure
(PSIG)
5,500 5,500
Weight
(lbs)
8,600 25,800

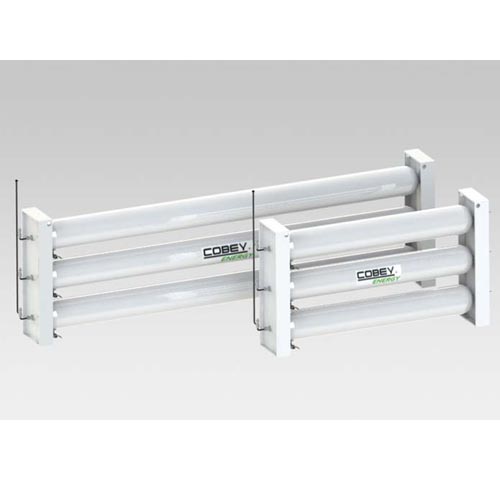

Cobey also provides CNG tubes of 11'6", 23', and 37' lengths upon request.




Cobey Energy designs and manufactures CNG compressor station equipment systems for station developers, end users and specifying engineering firms.  With almost 30 years experience in engineering, design and manufacturing of high pressure compressor packages and auxiliary systems for the Oil & Gas, Petrochem and Power Generation markets, Cobey Energy is well equipped to meet your CNG application requirements.
