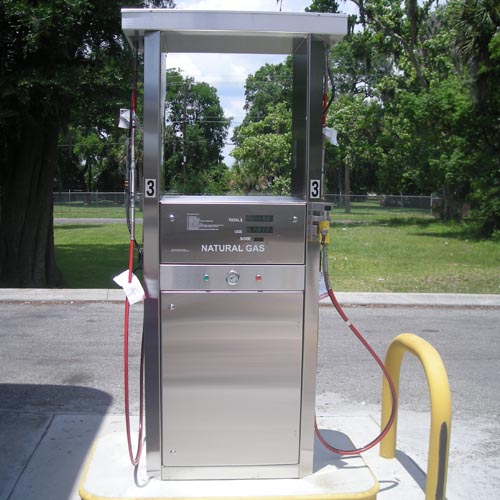

Fast Fill Dispensers

Cobey Energy CNG Fas Fill Dispenser standard features:

  • NTEP certified
  • Single or dual hose configurations
  • High profile, stainless steel dispenser cabinet
  • Hoses mounted on the top of cabinet to minimize hose wear
  • Lane oriented or side oriented hose configuration
  • Each inlet line has one coalescing filter
  • CNG dispenser control system with temperature compensation to control filling pressure and sequencing valves, includes heat of compression compensation
  • Electronic computer for safe volume and unit price, back lit display
  • Electronic computer fo safe volume and unit price, back lit display board for sale, volume, and price per unit display
  • Inlet valves are pneumatically actuated 1/2" full flow ball control valves, valves are spring loaded to close if power is removed from dispenser
  • MicroMotion CNG 50 Coriolis Mass Flow Meter








Cobey Energy designs and manufactures CNG compressor station equipment systems for station developers, end users and specifying engineering firms.  With almost 30 years experience in engineering, design and manufacturing of high pressure compressor packages and auxiliary systems for the Oil & Gas, Petrochem and Power Generation markets, Cobey Energy is well equipped to meet your CNG application requirements.




Associated Codes & Standards
ASME B31.3
ASME B31.1
ANSI B31.3
ANSI B31.1
NFPA 70
NFPA 52
NFPA 37
NFPA 30A
ANSI NGV 4.8
ANSI NGV 4.1
NTEP
